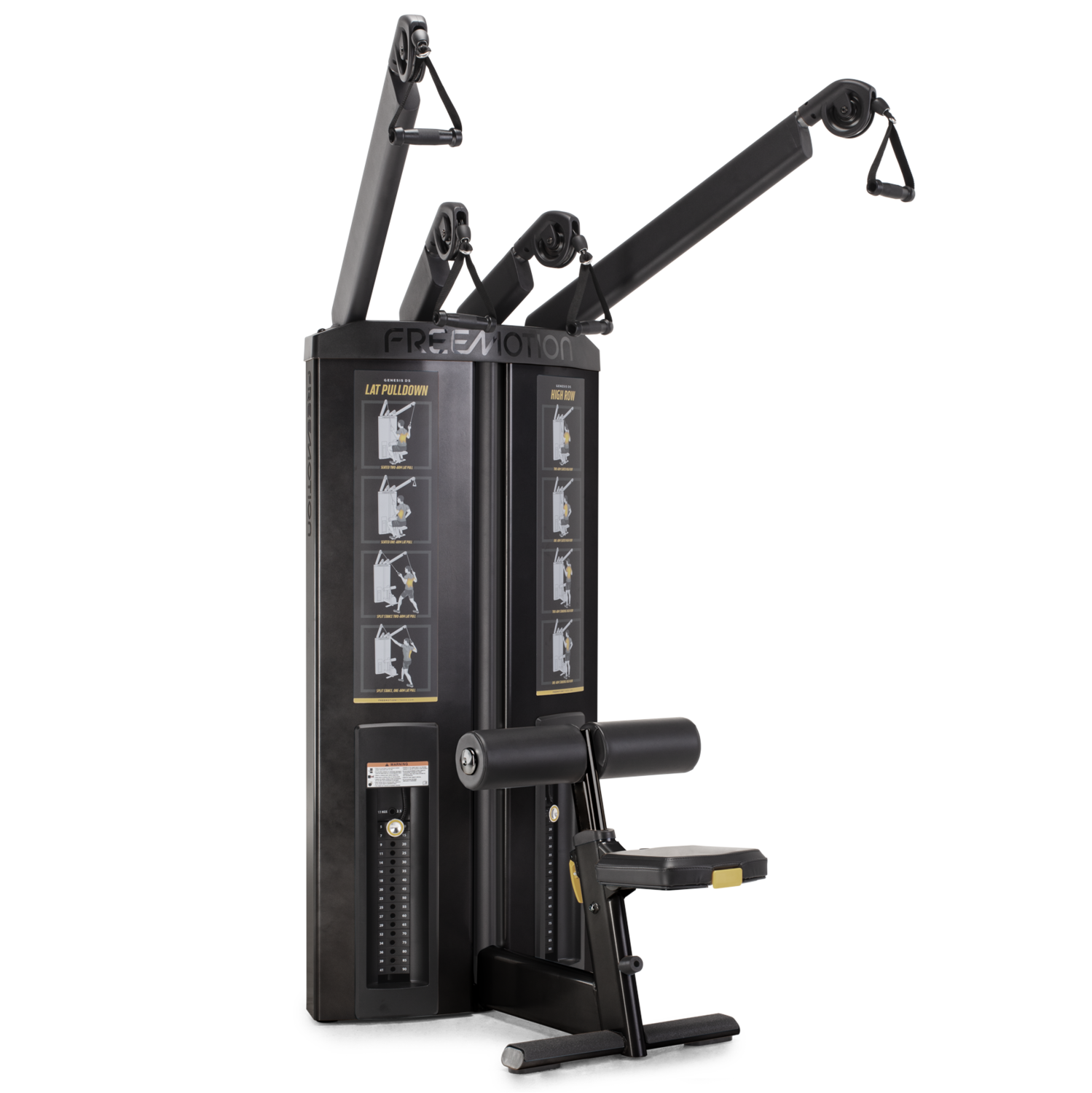

The GENESIS DS™ Lat pulldown/ High row engages the arms, shoulders, back and stabilizer muscles to improve overall core strength and balance. An adjustable thigh pad comfortably secures legs throughout the workout while the pivoting, padded seat pad can be quickly folded away for standing workout positions.

The Lat pulldown/high row engages arms, shoulders, back and stabilizer muscles to improve core strength and balance. The pivoting seat can be quickly folded away for standing workout positions.

• Multiple pulling options
• Adjustable thigh pad
• Independent arm movement
• Wheelchair accessible

Equipment features

• Instructional placards: yes
• Adjustments: pivot seat pad for standing Lat and row movements
• Weight stack lbs. (kg) qty 2 - 180 lbs. weight stacks (81.6 kg)
• Upholstery: vinyl with 2 in (5 cm) thick foam
• Pulleys: aluminum swivel pulleys
• Cable travel in (cm) 72 in (182.8 cm) per arm
• Rubber feet: soft pvc
• Ada compliant: wheelchair accessible
• Resistance lbs. (kg) 1 arm: 90 lbs. (40.8 kg) 2 arms: 180 lbs. (81.6 kg)
• Weight stack configuration lbs. (kg) 2 - 10 lbs. top plates, 34 - 10 lbs. Plates (2 - 4.5 kg top plates, 34 - 4.5 kg plates)
• Maximum user weight lbs. (kg) 400 lbs. (181.4 kg)
• Standard frame colors: dell gray
• Plastic colors: black, platinum metallic silver, bordeaux red, dell gray
• Standard upholstery colors: black vinyl

Product dimensions & weight

• Machine weight lb (kg) 709.8 lbs. (322 kg)
• Product l x w x h in (cm)54 x 48 x 84 in (137.1 x 121.9 x 213.3 cm)

Shipping dimensions & weight

• Shipping weight lb (kg) 830 lbs. (376.6 kg)
• Shipping l x w x h in (cm) box 1: 74.8 x 38.9 x 47.5 in (198.9 x 99 x 120.7 cm) box 2: 38.9 x 11.8 x 5.1 in (99 x 29.9 x 13 cm)

Regulatory approvals

• Approvals: en957,ce

Warranty (us)

• Frame: 10 years
• Cables1 year
• Parts: 3 years
• Other: 120 days
• Labor: 1 year
