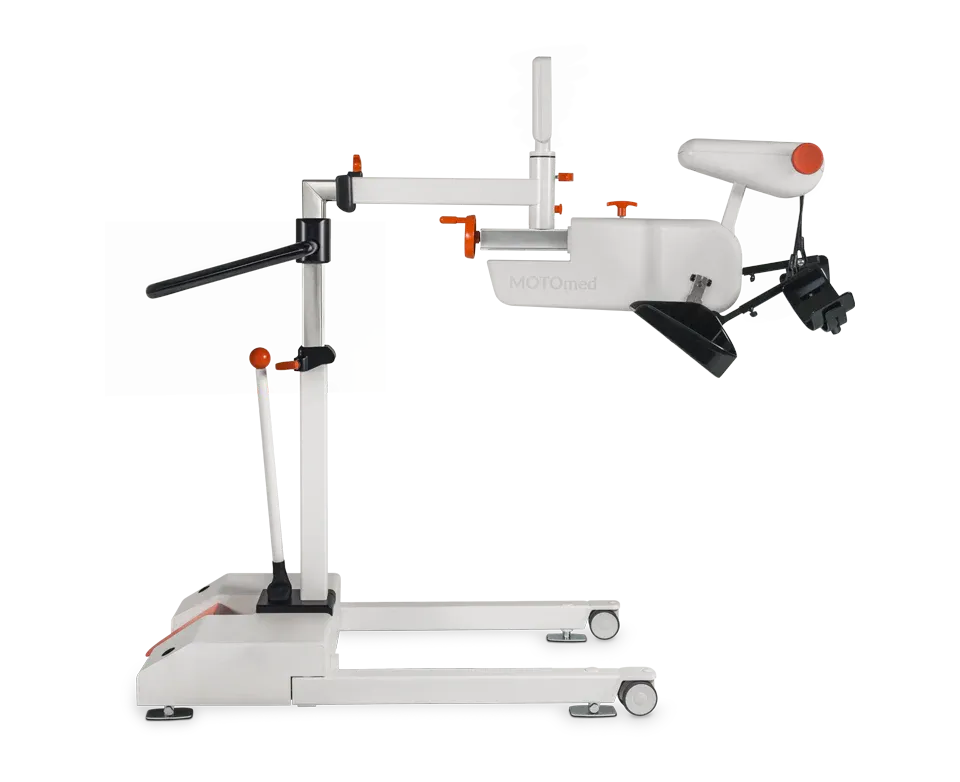

Rehabilitation should meet patients where they are and create a safe path forward. The MOTOmed Layson.la.prof is a professional active and passive therapy trainer designed for intensive care, critical care, early rehabilitation, hospitals and long-term care. It brings motor-assisted, active and passive arm, upper-body and leg training directly to the bedside, helping clinicians begin movement therapy when transferring a patient to conventional equipment may not be practical.

When strength, mobility or motor control is limited, providing consistent therapy can require significant time and physical support from caregivers. The Layson.la.prof addresses that challenge with ServoCycling, ServoTurning, adjustable positioning and intuitive controls that help patients participate using even minimal residual strength. MovementProtector monitors resistance and stops the pedals when a movement blockage is detected, while SpasmControl gently changes direction to help relieve a recognized spasm.

The expandable chassis adjusts from 26.4 to 41.3 inches (67 to 105 cm) wide and accommodates beds up to 41.3 inches (105 cm) high. Freely rotating castors make bedside positioning easier, while centrally operated four-point ground fixation creates a stable training platform. TrainCare leg guides, QuickFix foot supports and knee-bending adjustment help clinicians align and support the lower limbs while reducing unwanted lateral movement and joint overextension.

A removable 7-inch colour touchscreen gives patients and clinicians convenient control over programs and training parameters. Real-time and post-session feedback includes duration, distance, symmetry, muscle tone, active performance and active-to-passive participation. SymmetryTraining helps users recognize and engage a weaker side without allowing the stronger side to dominate.

Built with a sturdy metal structure and a closed PC/ABS body, the Layson.la.prof is designed for demanding clinical environments. Smooth, plastic-coated surfaces, removable components and wipe-disinfectable controls simplify hygiene procedures between users. For Canadian healthcare organizations, this combination of adaptability, clinical feedback and durable construction supports better equipment utilization and lasting value.

Complete Specifications and Measurements

• Dimensions, expandable chassis: 55.9–61 × 26.4–41.3 × 51.6–65.4 in (142–155 × 67–105 × 131–166 cm), L × W × H
• Weight: 231.5 lb (105 kg)
• Maximum patient weight: 297.6 lb (135 kg)
• Maximum bed height: 41.3 in (105 cm)
• Chassis clearance beneath bed: 3.9 in (10 cm)
• Guide-track spread width: 21.7–36.6 in (55–93 cm)
• Pedal radius: 2.8 in (7 cm)
• Castor diameter: 3 in (7.5 cm)
• Display: 7 in (18 cm) colour touchscreen
• Power: 100–240 V, maximum 120 VA, 50–60 Hz
• Classification: MDD IIa/MDR IIa, Class II, Type BF

Key Features and Real-World Advantages

• Active, passive and motor-assisted arm and leg therapy supports patients across changing ability levels
• ServoCycling and ServoTurning help activate and develop minimal residual strength
• MovementProtector and adaptive SpasmControl respond to movement blockages and spasms
• SymmetryTraining and detailed biofeedback support measurable, balanced participation
• Electronic foot insertion aid simplifies setup for patients with limited mobility
• TrainCare leg guides and adjustable knee-bending range improve positioning and support
• Expandable chassis, rotating castors and central four-point fixation enable secure bedside use
• Removable operating panel and patient remote improve clinical flexibility and patient engagement
• Sturdy metal construction and disinfectable PC/ABS surfaces support intensive multi-user operation
• USB interface, training-data export, therapy programs, games and personal-image slideshow encourage continuity and engagement

Models, Standard Equipment and Accessories

• Model: MOTOmed Layson.la.prof, item 261.139
• Standard: expandable or parallel chassis, TrainCare leg guides, QuickFix foot holders, safety foot shells, plastic-coated handles, StoreSet, patient remote, removable touchscreen and docking station
• Available accessories: hand fixation with wrist cuff and plastic-coated forearm shells with disinfectable straps
• Resolution Fitness support: product selection, facility planning, setup guidance, staff orientation and long-term service coordination across Canada

Warranty and Service

• Manufacturer warranty: 2 years
• Resolution Fitness provides Canadian sales support, setup guidance, staff training assistance and ongoing maintenance coordination
• Warranty coverage is subject to the manufacturer’s terms, proper use and prescribed maintenance requirements

When early movement matters, the MOTOmed Layson.la.prof gives care teams a practical way to deliver individualized arm and leg therapy directly at the bedside. Its active, passive and motor-assisted modes, MovementProtector, SpasmControl, ServoCycling, ServoTurning, SymmetryTraining, TrainCare supports and removable 7-inch (18 cm) touchscreen help patients participate safely across changing ability levels. The expandable system measures 55.9–61 × 26.4–41.3 × 51.6–65.4 inches (142–155 × 67–105 × 131–166 cm), weighs 231.5 pounds (105 kg), accommodates patients up to 297.6 pounds (135 kg) and works with beds up to 41.3 inches (105 cm) high. Its sturdy metal construction, disinfectable PC/ABS enclosure, rotating castors and central four-point fixation are built for reliable professional use. A two-year manufacturer warranty and Resolution Fitness support for selection, setup guidance, staff orientation and ongoing service coordination help Canadian healthcare facilities purchase with confidence.
