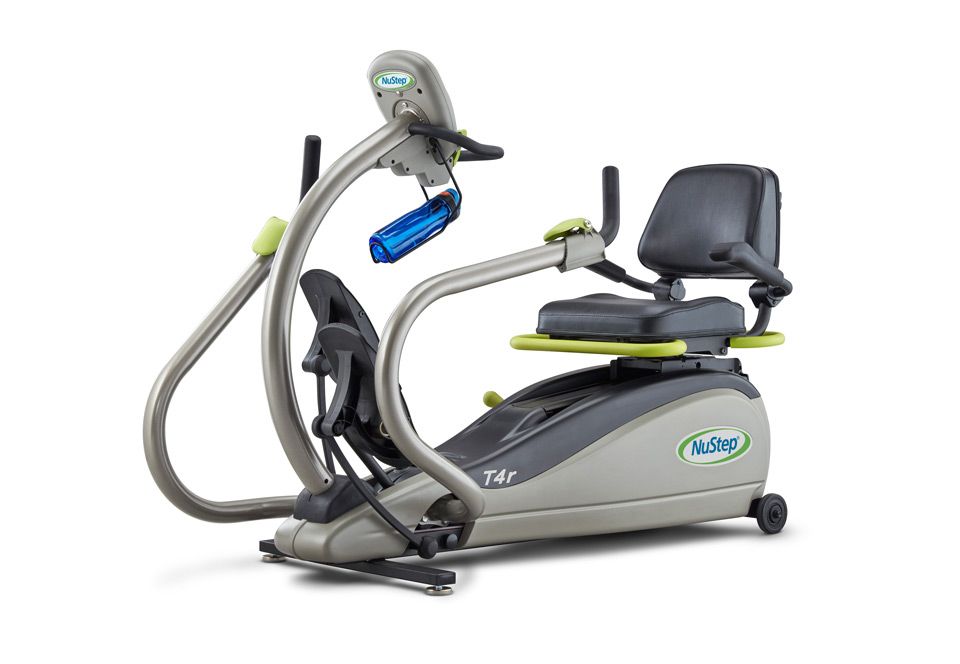

With overall dimensions of 60 inches long, 27 inches wide, and 45 inches high, and a solid 210 pound frame, the T4R provides a stable platform that inspires confidence. The 360 degree swivel seat with arm supports and a highest seat position of 15 inches allows for controlled, secure transfers. A low step through height of 9 to 12 inches reduces trip hazards, while the sturdy grab ring and StrideLock mechanism enhance safety during entry and exit. In environments where falls can have serious consequences, can you afford equipment that does not actively reduce risk? The T4R is designed to support both independent users and those requiring caregiver assistance.
Performance is equally considered. Ten resistance levels deliver a wide range from 5 to 800 watts, allowing clinicians to progress patients from early stage rehabilitation to higher intensity conditioning. Adjustable arm handles with up to 15 inches of length customization support upper body engagement or isolation, and ergonomic foot pedals accommodate users from 4 feet 6 inches to 6 feet 4 inches tall. With a 400 pound weight capacity, the T4R welcomes a broad population including deconditioned adults, bariatric users, and active seniors. The self generating power system eliminates the need for external outlets, simplifying placement in therapy gyms, hospital rooms, wellness centers, and shared condo fitness spaces.
The user friendly monochrome LCD display provides clear feedback on time, resistance, workload, and other key metrics, while Polar compatible heart rate monitoring supports structured cardiac rehab protocols. In a medical or senior living setting, consistent data tracking is not optional. It is essential for documenting progress and reinforcing motivation. When equipment lasts 10 to 15 years in high use environments, the return on investment extends well beyond the initial purchase. For budget conscious facilities, that durability translates into predictable lifecycle costs and fewer service interruptions.
Optional accessories such as the Foot Secure System, unilateral and bilateral leg stabilizers, and WellGrip set further enhance inclusivity for users with neurological conditions, limb weakness, or limited hand function. Bundled packages like the T4R Total Essentials Bundle and Stability Essentials Bundle streamline procurement and ensure your program is fully equipped from day one. Manufactured in Ann Arbor, Michigan, and trusted across hospitals and rehabilitation clinics, the T4R reflects a standard of craftsmanship and clinical credibility that aligns with facilities committed to long term care excellence.
Complete specifications and measurements
- Dimensions: 60 inches L x 27 inches W x 45 inches H
- Footprint: 152 x 69 x 112 cm
- Unit weight: 210 lbs or 95 kg
- User height capacity: 4 feet 6 inches to 6 feet 4 inches or 137 to 193 cm
- Maximum user weight: 400 lbs or 182 kg
- Seat dimensions: 17 inches W x 14 inches D with 17 inch back height
- Highest seat position: 15 inches
- Seat swivel: 360 degrees with arm supports
- Step through height: 9 to 12 inches
- Adjustable arm handle length: up to 15 inches
- Resistance range: 5 to 800 watts
- Resistance levels: 10
- Power source: self generating
- Display: monochrome LCD
- Heart rate monitoring: Polar strap compatible
Key features with practical advantages
- Smooth low impact motion that protects joints and supports daily use
- StrideLock mechanism for safer transfers and stable positioning
- Sturdy grab ring and ergonomic pedals for enhanced stability
- Adjustable upper body handles for customized engagement
- Swivel seat with arm supports to reduce fall risk
- Evidence based design suited for cardiac rehab, physical therapy, and senior wellness
- Long service life often 10 to 15 years in high use environments
Available models, options, or accessories
- Foot Secure System
- Unilateral Leg Stabilizer
- Bilateral Leg Stabilizer
- WellGrip Set
- Polar Transmitter Belt
- Transporter with T4 bracket
- Floor Mat
- T4R Total Essentials Bundle
- T4R Stability Essentials Bundle
Warranty details
- Frame: 10 years
- Parts: 5 years
- Labor: 1 year
NuStep is recognized across medical and rehabilitation communities for precision engineering, durable construction, and responsive customer support. At Resolution Fitness, we stand behind that craftsmanship with expert guidance, thoughtful facility planning, and ongoing service support to ensure your investment performs reliably for years to come.
When safety, accessibility, and measurable outcomes are non negotiable, the NuStep T4R stands ready. Facilities often struggle to find cardio equipment that truly accommodates seniors, cardiac patients, and individuals with mobility challenges while still delivering progressive resistance up to 800 watts. With a 400 pound capacity, 360 degree swivel seat, low step through access, and self generating power system, the T4R solves that challenge with confidence. Backed by a 10 year frame warranty and trusted durability in high use settings, it offers long term value for hospitals, clinics, senior living communities, and inclusive wellness centers seeking dependable performance without compromise.
