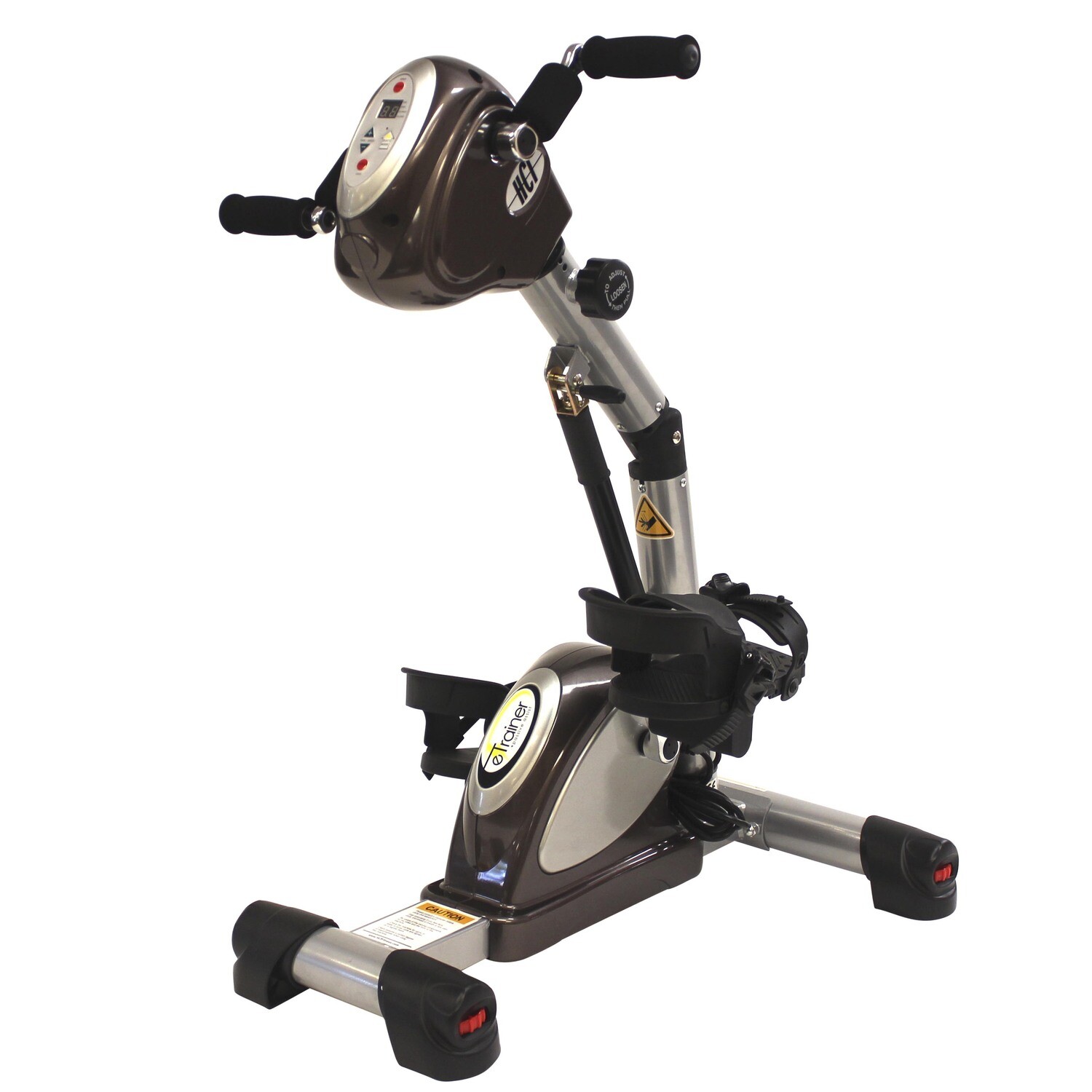

The eTrainer Passive Assist Trainer makes meaningful movement more accessible for people who may not have the strength, coordination, endurance, or mobility required to operate conventional exercise equipment. Designed for rehabilitation clinics, physiotherapy practices, long-term care, active-aging programs, accessible condo gyms, corporate wellness spaces, and home-based therapy, it provides smooth motor-assisted movement without placing unnecessary impact on the joints.

When inactivity limits circulation and allows joints and muscles to become increasingly stiff, maintaining mobility can become more difficult. The eTrainer uses two independent 50-watt motors to guide the arms, legs, or both together through consistent cyclical movement. Users can select from 15 motor-speed levels ranging from approximately 5 to 75 RPM, allowing therapists, caregivers, and adaptive users to begin gently and progress according to individual tolerance and clinical direction.

Its wheelchair-accessible configuration works with most standard wheelchairs and can also be used with a stable chair. The hydraulically assisted upper unit adjusts continuously to improve positioning for different users, while oversized orthopaedic pedals with 4-inch heel cups and securing straps help stabilize the feet. Comfortable handles support upper-body participation, and the large display clearly reports time, speed, distance, and calories.

For shared facilities, the compact steel-frame design delivers practical value without consuming the floor space of a full-sized rehabilitation cycle. Transport wheels simplify repositioning, minimal assembly reduces setup demands, and the straightforward controls help staff support a broader range of users. Resolution Fitness can assist with product selection, accessibility planning, delivery coordination, setup, and ongoing service support.

Complete Specifications and Measurements

• Model: E-PAT
• Product class: Light commercial motorized passive-assist trainer
• Dimensions: 28 in L x 32 in W x 32 to 40 in H (71.1 x 81.3 x 81.3 to 101.6 cm)
• Front support tube: 12 in W x 3.5 in H (30.5 x 8.9 cm)
• Product weight: 33 lb (15 kg)
• Motor system: Two independent 50-watt motors
• Motorized speed: 15 levels, approximately 5 to 75 RPM
• Training selections: Upper body, lower body, or simultaneous total body
• User positioning: Compatible with most standard wheelchairs or a suitable chair
• Machine user-weight limit: Unlimited because the user is seated independently of the frame
• Power: AC 110V, 50/60Hz
• Display feedback: Time, speed, distance, and calories
• Upper unit: Continuous hydraulic-assisted angle adjustment
• Pedals: Oversized orthopaedic pedals with 4 in (10.2 cm) heel cups and securing straps
• Mobility: Integrated transport wheels
• Assembly required: Pedals and hydraulic-assist tube

Key Features and Real-World Advantages

• Independent motors allow arm and leg movement separately or together, supporting individualized therapy and adaptive programming.
• Fifteen speed settings help users begin at a comfortable pace and progress gradually.
• Wheelchair-accessible positioning reduces transfer requirements for many users.
• Smooth passive movement supports low-impact mobility, circulation-focused exercise, and joint range-of-motion programming.
• Adjustable upper-body positioning helps accommodate different seating arrangements and user proportions.
• Large pedals, heel cups, and straps provide added foot support for users with reduced lower-limb control.
• Compact construction fits rehabilitation rooms, condo wellness areas, long-term-care facilities, and smaller clinical spaces.
• Steel-frame construction, simple controls, and limited moving accessories support reliable operation and straightforward maintenance.
• Resolution Fitness provides Canadian sales guidance, accessibility consultation, delivery coordination, setup assistance, and service support.

Available Models, Options, and Accessories

• Standard passive-assist model: E-PAT
• Optional attached chair accommodates users approximately 4 ft 9 in to 6 ft 1 in (145 to 185 cm)
• Optional chair capacity: 250 lb (113 kg)
• Standard use with most wheelchairs or an appropriate independent chair
• Contact Resolution Fitness to confirm current accessory availability, facility suitability, and configuration requirements

Manufacturer Warranty

• Frame: Lifetime warranty
• Mechanical parts: One-year parts or exchange warranty
• Electronic components: One-year parts or exchange warranty
• Warranty service is subject to manufacturer terms, proper installation, intended use, and normal maintenance requirements
• Resolution Fitness provides Canadian warranty coordination and after-sales service support

Regaining or preserving movement should not depend on a user being able to power a conventional exercise bike independently. The eTrainer Passive Assist Trainer provides a supportive alternative with two independent 50-watt motors, upper-body, lower-body, and simultaneous training modes, and 15 adjustable speeds from approximately 5 to 75 RPM. Its wheelchair-accessible design, hydraulically adjustable upper unit, oversized orthopaedic pedals, 4-inch (10.2 cm) heel cups, securing straps, transport wheels, and clear performance display make it a practical choice for rehabilitation, physiotherapy, long-term care, active aging, accessible housing, and home therapy. Measuring only 28 x 32 x 32 to 40 inches (71.1 x 81.3 x 81.3 to 101.6 cm) and weighing 33 pounds (15 kg), it delivers guided upper- and lower-body movement in a compact, light-commercial format. The machine itself has no stated user-weight restriction because users remain seated in their wheelchair or an independent chair; the optional attached chair supports up to 250 pounds (113 kg). A lifetime frame warranty, one-year mechanical-parts exchange warranty, and one-year electronic-components exchange warranty provide additional purchasing confidence, supported by Resolution Fitness product guidance and Canadian service coordination.
